Tube Extruded Enclosure

aluminium tube 57*28-L anodized enclosure suppliers extruded aluminium box case

Item No.: PA003
No. PA003
Brand :  PUMAY
External dimensions: 57 x 28 x 90 mm / 2.24'' x 1.1'' x 3.54''L  ( W*H-L )
Structure : Tube
Package weight: 0.15 KG
Unit Price : 1-5 USD  / set
Place of origin : Foshan , Guangdong, China
Price Terms : FOB , EXW , CIF
Description

Aluminum tube 57*28-L anodized enclosure suppliers extruded aluminum box case
NO. PA003

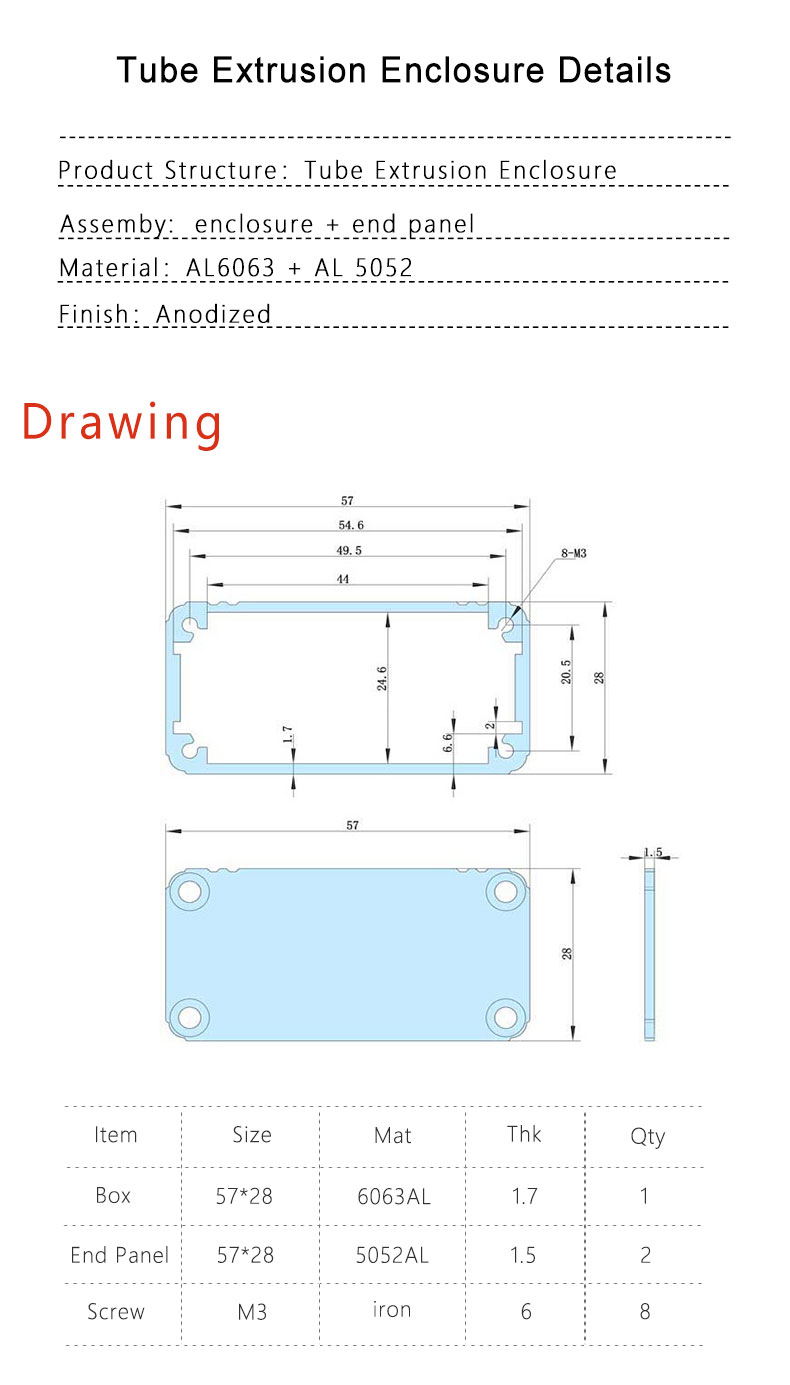

Dimensions from: W x H x L
External dimensions: 57 x 28 x 90 mm / 2.24'' x 1.1'' x 3.54''L  ( W*H-L )
Type: Tube Extrusion Enclosure
End Panel: Flat style

NO.          Part Name   Pcs               Material                        Finish / Color
1 Extrusion Enclosure      1    Aluminum Alloy 6063          Sandblast  / Anodizing Black Color
2 End Panel    2    Aluminum Alloy 5052 Sandblast  / Anodizing Black Color
3 M3x8 Screw    8     Iron  Black  / Silver





Temper T4-T6
Advantages 1.Good quality in material
2.Excellent surface finish
3.Competitive price
Certification CE / SGS / ROSH are available
Length Can be customized
Protection Level No IP Rating
Packing Box
Advantages  Light  , Heat sink
Tolerance 0.05mm~0.1mm
DRW format PDF/DWG/IGS/STP/ etc
Function Aerospace  / Automotive   /Electronic /High -end audio
Mechanical / medical  / military / product design / prototype development  / scientific research
aluminium tube,enclosure box suppliers,aluminium box case,extruded enclosure,anodized aluminum box
MOQ  1 Set
Delivery Time  Stock Enclosure  3 days, Customzied Sample 7 Days, Mass Order 15 days
Delivery Method  Express, Air Plan , Sea
Machine Process Cutting,Punching , Drilling, Bending , Weld, Milling , CNC
Finish Process Polish, Brush, Sandblast
Color Anodizing, Spraying


We offered customized services for design, length, cut holes, finish treatment, logo print service, which helps to be a
good and fashionable style. We keep all our inventories for fast delivery and usually provide samples within one to
three business days. This is the standard service of PUMAY.


CUSTOMIZED SERVICE
Design    Most of Our Products are public mold. so if have someone can work for you, contact us to get the drawing for you to design. if no, contact us to give you the solution to help find the right box.   Below are the details we work with:
 1. stp (STEP file)
 2. igs (IGES file)
 3. dwg (AutoCad 2D assembly)
 4. dxf (AutoCad 2D assembly
 5. pdf
 6. ai ( Coreldraw ) for logo print
 7. cdr ( Coreldraw ) for logo print
 8. hand in made picture mark
 9. sent us a sample, according to the real size to make it.
MOLD Built Your Own Design, We are Undertake Extrusion molding, plastic enclosure mold, punch mold design, and processing. small mold 7-15 days, big mold 25 days
CUT HOLES  Public mold can make with customized length, Cut Holes with different machine process methods like punching, CNC milling, wire cutting, and Laser cutting for your Electronic Components.
FINISH TREATMENT Standard Finish treatment is Brush and Sandblast.
CUSTOMIZED COLOR Aluminum enclosure color is usually black, white, gray, blue, and gold, To change the color of the casing, the aluminum body is made using a different color anodizing. Requirements change color when required to provide color.
LOGO PRINT   According to provide design drawings and printing plate.
