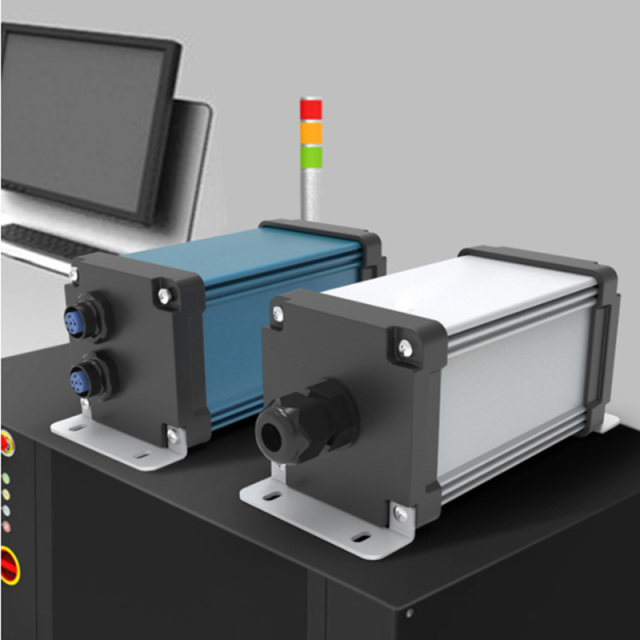

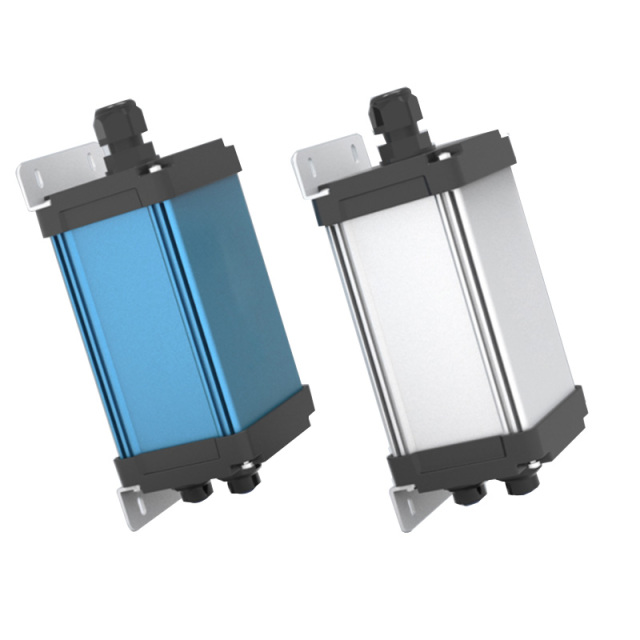

PG002 60*60 IP68 waterproof aluminum enclosure

Item No.: PG002
No. PG002
Brand:  Pumay

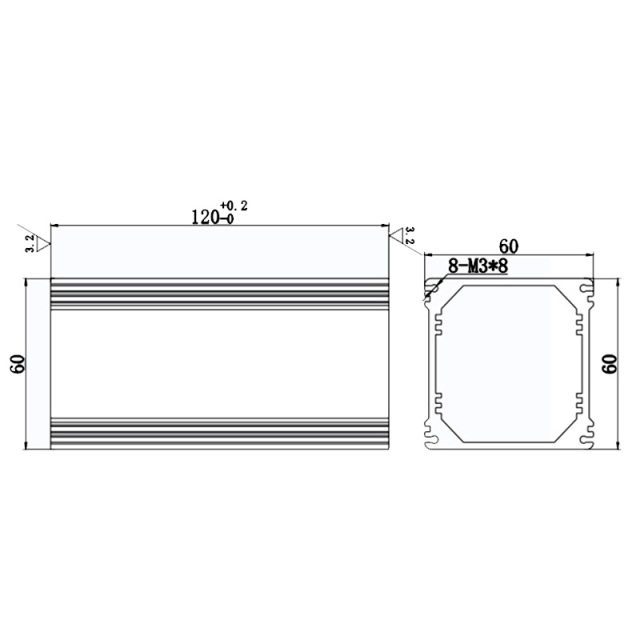

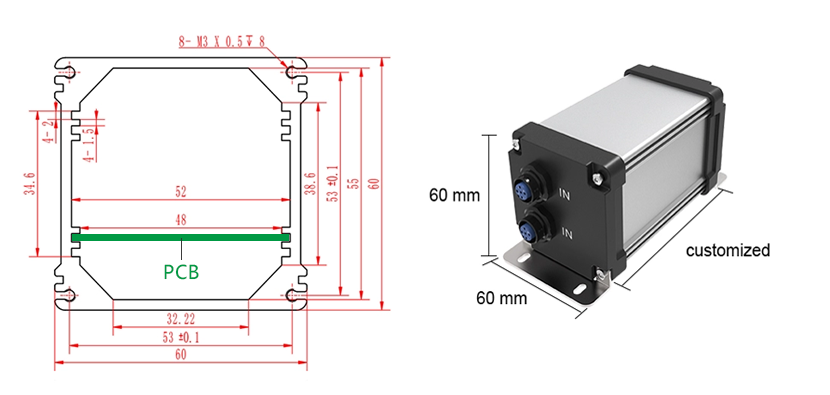

External dimensions: 60*60-L  / 2.37''*2.37*L  ( W * H * L )
Structure : Tube
Stock Length :70/80/100/120/150 mm
Stock Color :Blue / Silver
Description Review
Description

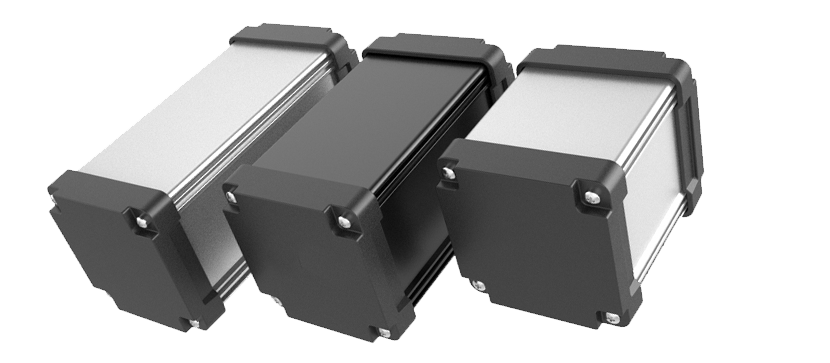

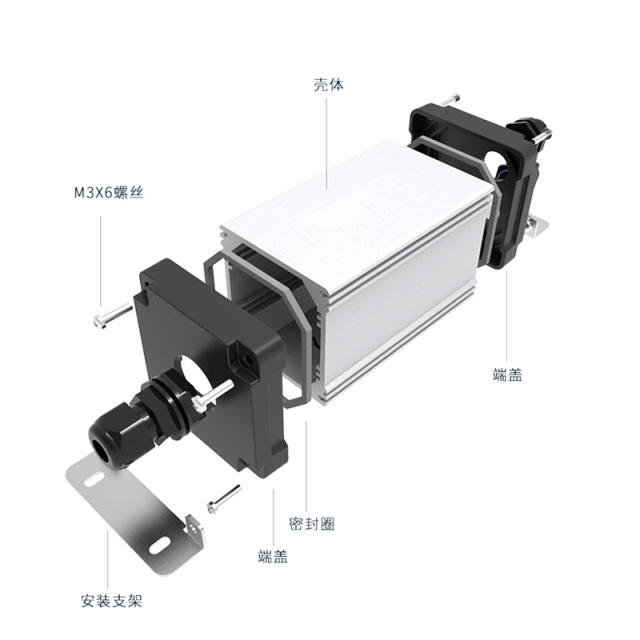

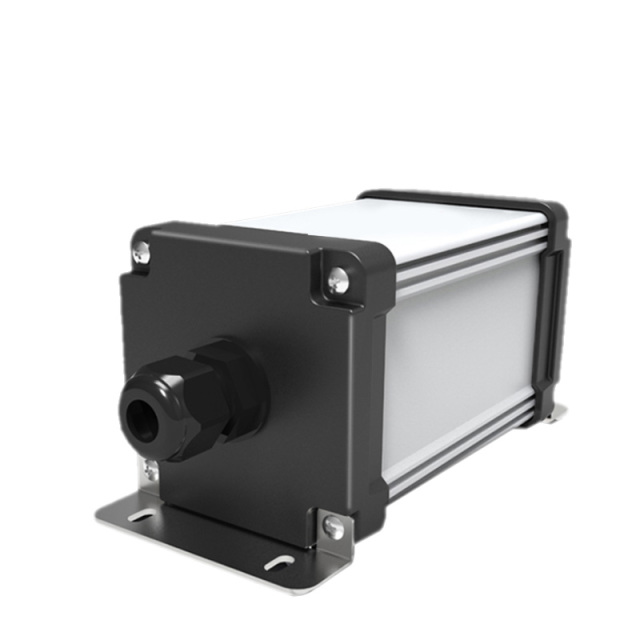

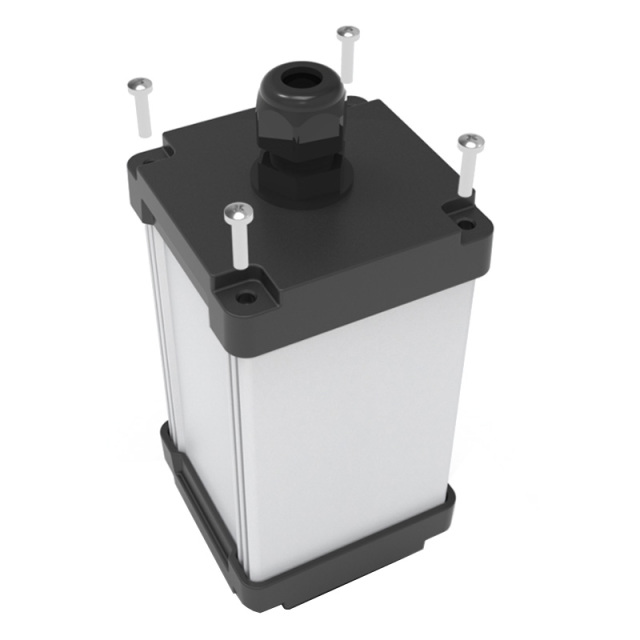

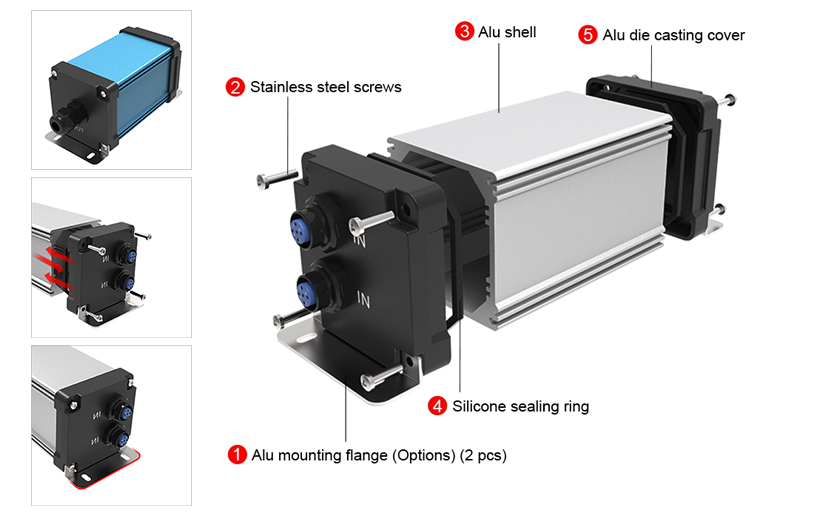

Aluminum extruded enclosure with Die-casting end panels. Stainless steel screw; Good seal screws design,
waterproof rate up to IP68. Suitable for underwater detection and outdoor monitoring equipment. Optional stocking specifications, length can be customized.







Name Waterproof Aluminum Enclosure
Temper T5
Advantages 1. Aluminum extruded enclosure,Length can be customization.
2. Die-casting end panels.

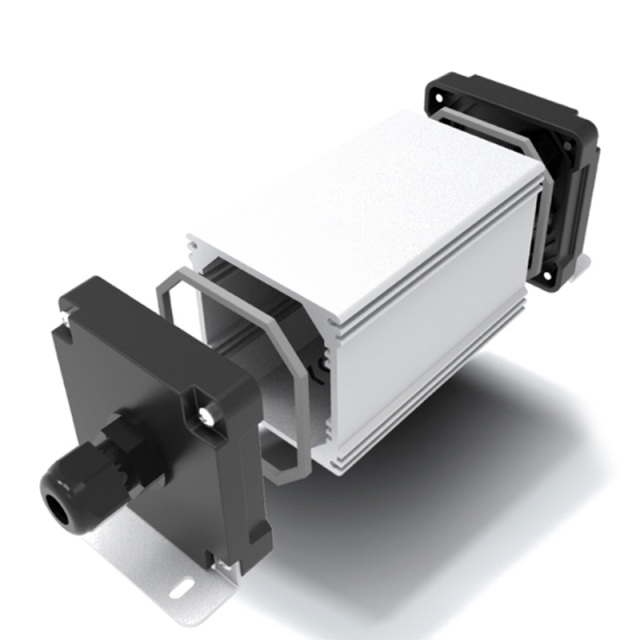

3. Integrated silicone sealing ring.
4. Holes cutting and milling customized.
5. Apply to rail transit, underwater detection, outdoor monitoring equipment.
Certification CE / SGS / ROSH are available
Length Can be customized
Protection Level IP68
Packing Box
Advantages Light, Heat sink
Tolerance 0.1mm~0.3mm
DRW format PDF/DWG/IGS/STP/ etc
Function perforated metal enclosure, aluminum HDD enclosure, aluminum heat sink profiles, small aluminum box,
brushed aluminum panels, electronics enclosure box
MOQ 1 Set
Delivery Time Stock Enclosure  3 days, Customzied Sample 7 Days, Mass Order 15 days
Delivery Method Express, Air Plan, Sea
Machine Process Cutting, Punching, Drilling, Bending, Weld, Milling, CNC
Finish Process Polish, Brush, Sandblast
Color  Anodizing , Spraying



CUSTOMIZED SERVICE

Design    Most of Our Products are public mold. so if have someone can work for you, contact us to get the drawing for you to design. if no, contact us to give you the solution to help find the right box.   Below are the details we work with:
 1. stp (STEP file)
 2. igs (IGES file)
 3. dwg (AutoCad 2D assembly)
 4. dxf (AutoCad 2D assembly
 5. pdf
 6. ai ( Coreldraw ) for logo print
 7. cdr ( Coreldraw ) for logo print
 8. hand in made picture mark
 9. sent us a sample, according to the real size to make it.
MOLD Built Your Own Design, We are Undertake Extrusion molding, plastic enclosure mold, punch mold design, and processing. small mold 7-15 days, big mold 25 days

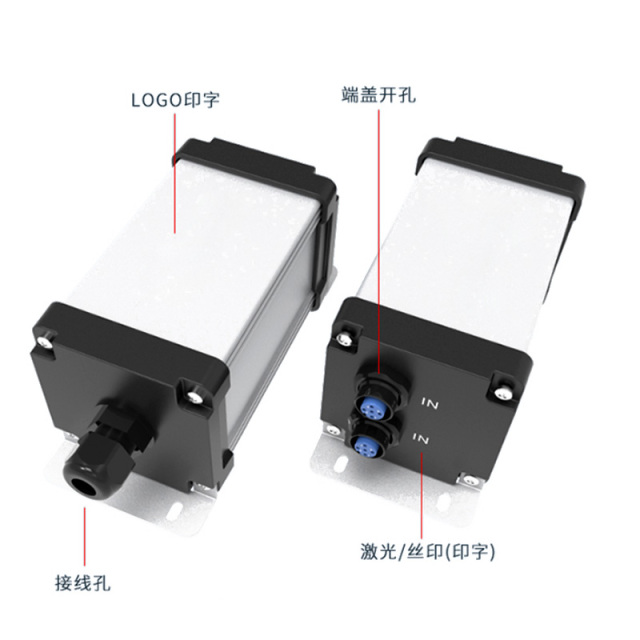

CUT HOLES  Public mold can make with customized length, Cut Holes with different machine process methods like punching, CNC milling, wire cutting, and Laser cutting for your Electronic Components.
FINISH TREATMENT Standard Finish treatment is Brush and Sandblast.
CUSTOMIZED COLOR Aluminum enclosure color is usually black, white, gray, blue, and gold, To change the color of the casing, the aluminum body is made using a different color anodizing. Requirements change color when required to provide color.
LOGO PRINT   According to provide design drawings and printing plate.
